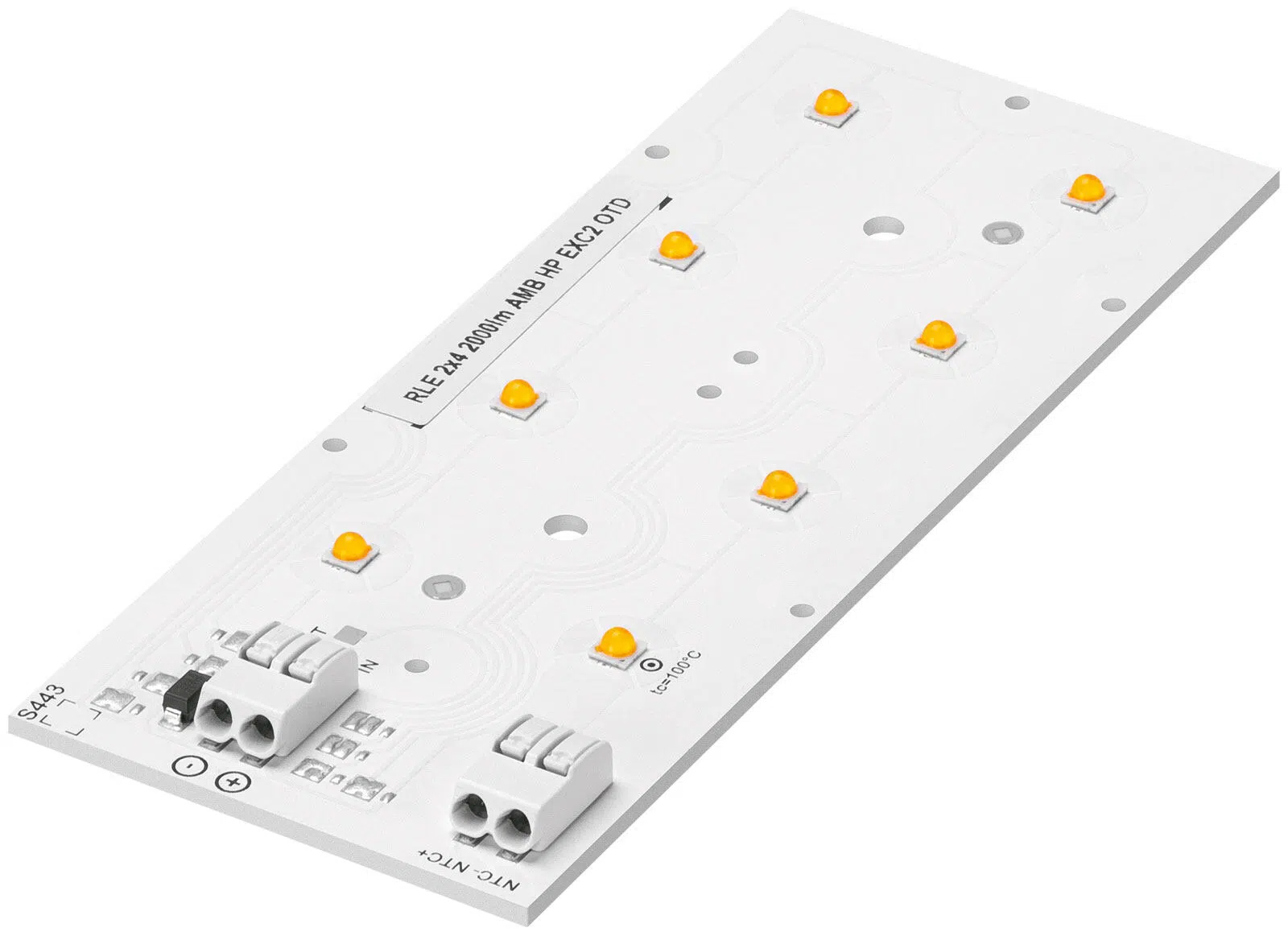

2×4 / 2×8 EXC2 AMB Outdoor LED Module for Industrial

Optical Properties

3,700 lumens of useful luminous flux at Irated temperature = 25 °C
111 lumens/watt efficiency of the LED module at Irated temperature = 25 °C
• Amber light (pale yellow), similar to high-pressure sodium vapor lamps
• Improved visibility in foggy weather with better penetration and less glare
• Ideal lighting choice for areas with high pedestrian traffic such as harbors or coastal areas, mountain roads, and pedestrian crossings
• Insect-friendly spectrum makes it suitable for natural habitats
• Decorative lighting, for example, in old town areas or stargazing parks

Mechanical Properties

• Module dimensions: 49.5 X 121.4 mm and 49.5 X 223 mm
• Mount the module with the lens into the luminaire using M3 screws

Engineered for the World’s Harshest Climates

The AMB outdoor LED module is built for resilience. Whether facing coastal salt air or industrial chemical exposure, our modules are tested to exceed international standards.

  • Certified Protection: Passed rigorous IEC 60068-2-52 (salt spray) Ve GR-63-CORE (hazardous gas) test.

  • Extreme Temperature Range: Reliable operation from -40°C up to +105°C, suitable for both arctic and desert industrial applications.

  • Surge & Thermal Safety: Tested for 6 kV surges (with Riga drivers) and equipped with an integrated NTC for proactive over-temperature protection.

Technical Superiority & Zhaga Compatibility

We prioritize ease of integration for luminaire manufacturers and contractors:

  • Zhaga Book 15 Certified: Standardized dimensions (2×4 / 2×8) for global compatibility.

  • Optical Flexibility: Fully compatible with industry-standard 2×2 lensler, such as the LEDiL STRADA 2×2 series.

  • Optimized Performance Modes: Available in HE (Yüksek Verimlilik), NM (Rated), Ve HO (High Output) to meet specific project lumen requirements.

  • Rapid Installation: Features a professional push-in port for quick, tool-free wiring, reducing assembly costs.

Talep Gönder
